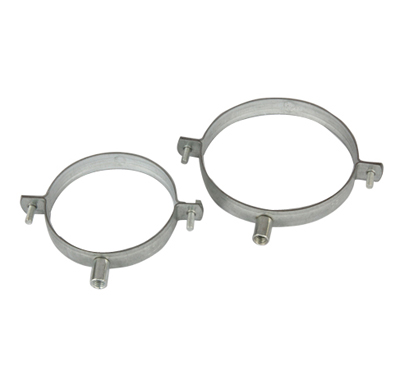

Suspension clamps for ducts

Diameter range from 80 mm up to 1000 mm

Suspension of circular ducts

Dia 80 up to 400 mm with screw M6 on either side, 1-point suspension with dual M8/M10 nut on top

Dia 450 up to 800 mm with 2-point suspension with M10 hole on either side

Made of hot dipped sendzimir zinc plated steel

Maximum suspended weight of 500 kg

Width is 20 mm for Dia 80 - 400 mm and 25 mm above Dia 400 mm
